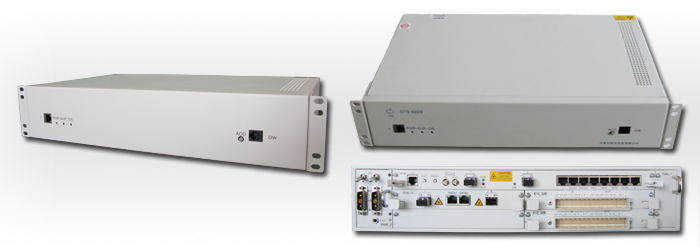

0TS-622 is multifunctional transmission equipment, has STM-1 and STM-4 optical interface with standard transmission rate, slot-structure, multiple light directions, high integrated E1 board and multi-channel shared Ethernet card. OTS-622 is an ideal network gateway equipment for small volume optical transmissions.

OTS-622 equipment supports 1008×1008VC12 / 48×48VC3 / 16×16VC4 non-block crossing and ADM. It also has the uni-directional and bi-directional broadcasting function.

Its network management can support assignment, warning, maintenance, supervision and management functions.



OTS-622 contains 2 optical interface on the main board, besides 4 expansion slots. E1 card, Ethernet card, Optical port card extensible.

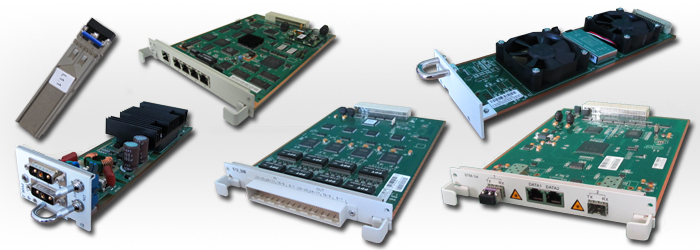

OTS-622 Signal Processing Slot List
Module Introduction
8×E1 card 8 channels of E1(ballanced/unballanced)
32×E1 card 32 channels of E1(ballanced/unballanced)
LAN card 10/100BAS_T auto adapted
Optical interface card 1×STM-4/2×STM-1 per board
Fan card Radiator



Frame Parameter

OTS-622's framework is made of compound metal, 19 inch external width; 2U height; 24cm length.

This equipment can be located on any stable base, and can be also screwed through mounting hole to 19 inch cabinet.



Port Physical Parameter

OTS-622
Name Description
E1 port OP interface, connected to ddf with L9 coaxial connector.
Optical interface Optical transceiver, LC
LAN Interface RJ45
EOW RJ11
NM port DB9(socket) & RJ45



Port Electrical Parameter

Optical Interface

Code rate: STM-1/STM-4
Transmit mode:
            S1.1,L1.1,L1.2,S4.1,L4.1,L4.2
Transmit power: -8∼2dBm
Receive sensitivity: -28∼-34dBm
Optical ports: 1∼10 STM-1/1∼4个STM-4

E1 Interface

Capacity: 8/32 channels
Transmission Type: HDB3
Transmission Rate: 2048Kbit/s
Permissible Deviation: ±5×10E-5
Impedance at E1 Interface: 75Ω/120Ω
E1 Signal Amplitude: 2.37V/3V

LAN Interface

Specification: IEEE802.3
Bandwidth: 100Mbit/s
Applicable Ethernet rate: 10M/100M auto
                               adaptation
Work mode: Half-duplex/full duplex
Rate Control: By NM software
                        N×2M(N=1∼50)
Mapping Path: E1-C12-VC12-TU12-TUG2-
                 TUG3-VC4-AU4-AUG-SDH

Clock option

2048KHz external clock
STM-1 timing source inputs
STM-1 tributary clock
STM-4 timing source inputs
STM-4 tributary clock
SSM function
working mode:
            locked/keeping/Internal mode
priority: NM software control

EOW

Capacity: 25
Calling function:
all call, selective call, group call
Code mode: A-law/µ-law
Interface: VF
Ring frequency: 450Hz
Ring mode: buzzer

Working environment

Feeding mode: -48V/DC
Voltage range: -48V±15%
Operation temperature: 5℃∼45℃
Relative humidity: ≥95%(T≥25℃)



Point to point mode

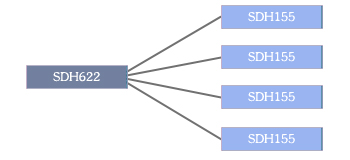

Star mode

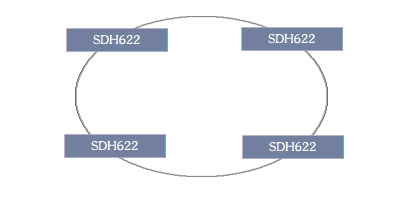

Ring mode
