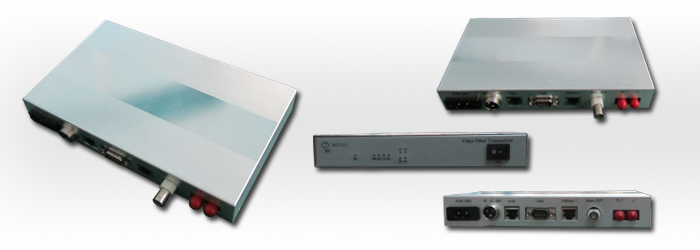

HGV1221 serial video optical transceiver achieves the transmission of 1×video, 1×audio, 2×data, and 1×10/100M Base_T through optical fiber. Video data bandwidth: 8MHz, input/output impedance: 75Ω unbalanced; Audio frequency response: 10Hz∼20KHz, digital bit width: 24bit, input/output imdedance: 120Ω balanced; data rate: 0∼256Kb/s, BER:  < 10E-9.

Multiple power supplies. Box casing, 262mm×206mm×46mm.
